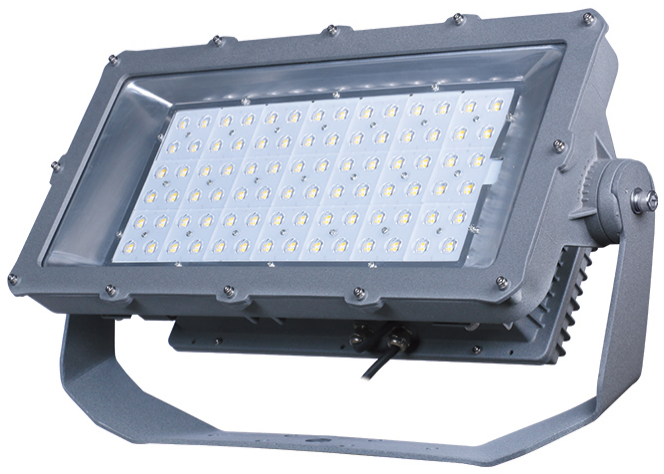

Led High Mast Lamp Highmast Lighting YAHP-01
Material: die-casting body.
Gearbox available.
High mast lamp uses Tempered glass cover and PC lens.
Gearbox available.
High mast lamp uses Tempered glass cover and PC lens.
Product Details
This high mast lamp highmast lighting YAHP-01 series is a three-volume high-performance mast.
The high mast lamp highmast lighting fixture is made of high-pressure cast aluminum.
The high mast lamp highmast lighting fixture is made of high-pressure cast aluminum.
YAHP-01 highmast lighting must have a driving efficiency of up to 120 lm/w and will be able to produce up to 75,000 lumens of 4000K luminance modules finished in gray or black according to their standards.
Specification
| Product Code | YAHP-01-200 | YAHP-01-400 | YAHP-01-600 |
| Wattage input | 200W | 400W | 600W |
| Color temperature | 3000-6500K | ||
| Angle of light | 30 ° / 60 ° / 90 ° | ||
| Luminous flux | 69000-75000lm | ||
| Input voltage | AC90-305V | ||
| Frequency band | 50 / 60HZ | ||
| Power factor | PF≥0.95 | ||
| Color rendering | Ra≥70 | ||
| Working condition temperature | -40-50 °C | ||
| Moisture of working conditions | 20%-90%RH | ||
| LED lifespan | 50000H | ||
| Degree of protection | IP66 | ||
| Installation height | 10-15M | 15-20M | 20-25m |
| Net weight | 12.5KG | 24.0Kg | 36.0Kg |
| Total weight | 13.0Kg | 24.8Kg | 37.0Kg |
| Packing size (mm) | 350*600*240 | 620*660*240 | 950*660*240 |
Note:
High mast lamp product net weight and gross weight are different due to different product configuration.
The highmast lighting data provided in the table are for reference only, subject to the actual situation.
