Model No: YAHB-04
200W Die Casting Man High Quality Catenary Ceiling Lighting
Quantity :
Subscribe to our Newsletter
200W Die Casting Man High Quality Catenary Ceiling Lighting YAHB-04
When innovation becomes sustainable

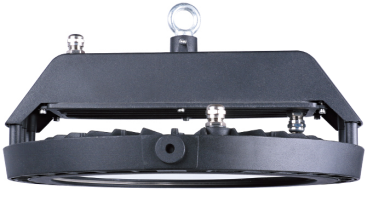

YAHB-04 high bay hanging light is an LED Lighting for suspension installation on a steel cable.
The overhead lighting system is in fact the perfect solution for illuminating spaces with high ceilings.
The perfect solution for high bay hanging light with high energy efficiency.
Suspended urban and high bay lighting
YAHB-04 high bay hanging light is part of the HB(High Bay) series, a complete system designed for a wide range of pole-top, bracket and suspension applications.
Factory lighting round shape ceiling mounting YAHB-04
Led high bay hanging light factory lighting round shape ceiling mounting
Material
high bay hanging light uses Die casting body.
Specifications
| Product Code | YAHB-04-100 | YAHB-04-150 | YAHB-04-200 | YAHB-04-250 | YAHB-04-300 |
| Input Wattage | 100W | 150W | 200W | 250W | 300W |
| Color Temperature | 3000-6500K | ||||
| Light Angle | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° | 120° |
| Luminous Flux | 12000-14000lm | 18000-19600lm | 24000-28000 lm | 24000-28000 lm | 33000-36000lm |
| Input Voltage | AC90-305V | ||||
| Frequency Range | 50/60Hz | ||||
| Power Factor | PF≥0.95 | ||||
| Color rendering index | Ra70-80 | ||||
| Temperature of Working Condition | -40-50ºC | ||||
| Humidity of Working Condition | 10%-90%RH | ||||
| LED Lifetime | 50000h | ||||
| Protection Grade | IP66 | ||||
| Net Weight | 3.2kg | 3.3kg | 3.9kg | 4.2kg | 5.9kg |
| Gross Weight | 3.8kg | 4.0kg | 4.8kg | 5.0kg | 6.7kg |
| Packing Size(mm) | 380×380×185 | 388×388×198 | 430×430×185 | 430×430×185 | 525×525×210 |
Note:
YAHB-04 high bay hanging light product net weight and gross weight are different due to different product configuration.
The high bay hanging light data provided in the table are for reference only, subject to the actual situation.
