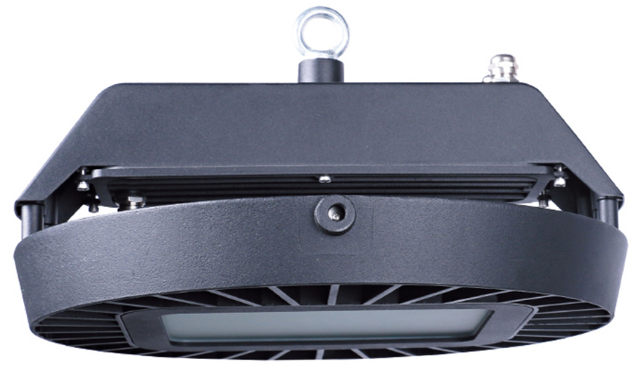

YAHB-02 Aluminum Suspension Catenary UFO High Bay Industrial Light LED
When innovation becomes sustainable
  • YAHB-02 high bay industrial light is an LED Lighting for suspension installation on a steel cable.
  • The overhead lighting system is in fact the perfect solution for illuminating spaces with high ceilings.
  • The perfect solution for high bay lighting with high energy efficiency.

Suspended urban and high bay lighting
YAHB-02 high bay industrial light is part of the HB(High Bay) series, a complete system designed for a wide range of pole-top, bracket and suspension applications.



Nice-looking UFO High Bay Industrial Light YAHB-02
Nice-looking UFO, very popular inthe market,3 types of bean angle for option.
Material: High bay industrial light uses Die casting body and PC lens.

This series is a high-performance High Bay available in two sizes.
The luminaire is manufactured from high pressure die-casting aluminum.
It shall have a led efficiency up to 120 Im/w and will be capable of producing up to 24000 luminaire lumens at 4000K finished in Grey or black as standard.

Product Specification
Product CodeYAHB-02-80YAHB-02-200
Input Wattage80W200W
Color Temperature3000-6500K
Luminous Flux8400-9600Im 21000-24000lm
Input VoltageAC90-305V
Frequency Range50/60Hz
Power FactorPF≥0.95
Color rendering indexRa≥70
Temperature of Working Condition-40-50ºC
Humidity of Working Condition20%-90%RH
LED Lifetime50000h
Protection GradeIP66
Net Weight8.2kg7.4kg
Gross Weight10.1kg8.6kg
Packing Size(mm)410×410×200470×470×200

Note:
High bay industrial light product net weight and gross weight are different due to different product configuration.
TheHigh bay industrial light data provided in the table are for reference only, subject to the actual situation.
