Model No: YAHB-05
Easy Suspension Installation Stadium High Bay LED Lights
Quantity :
Subscribe to our Newsletter

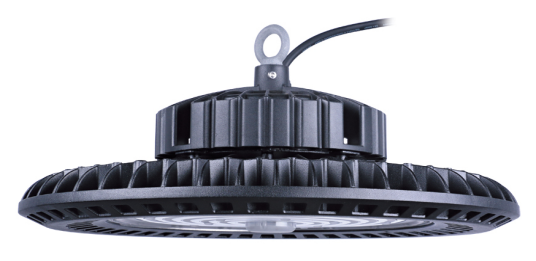

Aluminum high bay light YAHB-05
When innovation becomes sustainable
YAHB-05 is an aluminum high bay light for suspension installation on a steel cable.
The overhead lighting system is in fact the perfect solution for illuminating spaces with high ceilings.
The perfect solution for aluminum high bay light with high energy efficiency.
Suspended urban and high bay lighting
Aluminum high bay light YAHB-05 is part of the HB (High Bay) series, a complete system designed for a wide range of pole-top, bracket and suspension applications.
UFO LED Aluminum High Bay LightYAHB-05
Nice-looking UFO, very popular inthe market, 3 types of bean angle for option.
Material
Aluminum high bay light YAHB-05 is grouped Die casting body and PC lens.
Specifications
| Product Code | YAHB-05-100 | YAHB-05-150 | YAHB-05-200 |
| Input Wattage | 100W | 150W | 200W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Light Angle | 60°/90°/120° | 60°/90°/120° | 60°/90°/120° |
| Luminous Flux | 12000-14000 lm | 18000-19600 lm | 24000-28000lm |
| Input Voltage | AC90-305V | ||
| Frequency Range | 50/60HZ | ||
| Power Factor | PF≥0.95 | ||
| Color rendering index | Ra70-80 | ||
| Temperature of Working Condition | -30-45°C | ||
| Humidity of Working Condition | 10%-90%RH | ||
| LED Lifetime | 50000h | ||
| Protection Grade | IP66 | ||
| Net Weight | 3.5kgs | 4.8kgs | 6.5kgs |
| Gross Weight | 4.5kgs | 5.8kgs | 7.5kgs |
| Packing Size(mm) | 295x295x165 | 355x355x165 | 415x415x175 |
Note:
Product net weight and gross weight are different due to different product configuration.
The data provided in the table are for reference only, subject to the actual situation.
