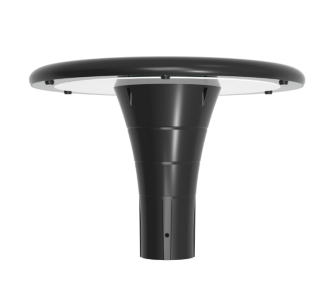

80W Led Urban light Garden YAUB-03A
Product Description
  • The YAUB-03 light garden is a high efficiency and price competitive garden light which could be used as a wide range of pole top, bracket and suspension applications
  • Compliance with international standards  ENEC, CB, CE, EMC, LM79, Rohs …
  • Provides a power output from 30 watt to 120 watt and various lighitng distribution available.

Features

  • Elegant and exquisite appearance design

  • Safe and reliable structural design

  • Simple structural design


Installing Way
  • YAUB-03A light garden can be Horizontal only.

Material

  • YAUB-03A Light garden uses Die casting Aluminum body, Ultra clear tempered galss.


Specifications
ModelYAUB-03A-80
Input Wattage (W)30/40/50/60/80
Installation Pipe Diameter φ76mm
Installation Height (m)4 - 8
Input Voltage90~305Vac
Frequency Range50/60Hz
Power Factor≥0.9
Light source LED
DriverInventronics
Meanwell (optional)
other brand of driver（upon request）
Luminaire efficacy (lm/W)130-150
Color Temperature4000K (3000K/5000K、5700K upon request）
Color rendering index≥70
The environment temperature-40～45℃
Humidity of Working Condition20%～90%RH
Protectin GradeIP66
Protection levelIK08
Standards & CertificationsCE
Rohs
MaterialsHousing: ADC12 die-cast aluminum
Cover: Toughened Glass
External Screws: 304 stainless screws
Spray ColorGrey/Black ( other upon request)

Product size and weight
ModelProduct size (mm)Packing size (mm)G.WN.W
LWHLWH(kgs)(kgs)
YAUB-03A-9045045031856052040055.5

Note:
YAUB-03A Light garden product net weight and gross weight are different due to different product configuration.
The YAUB-03A Light garden data provided in the table are for reference only, subject to the actual situation.
