Model No: YASL-17
150W 300W Die Casting Luminaries Commercial LED Lights
Quantity :
Subscribe to our Newsletter
LED Light Street Lamp Parking Lot Lighting YASL-17

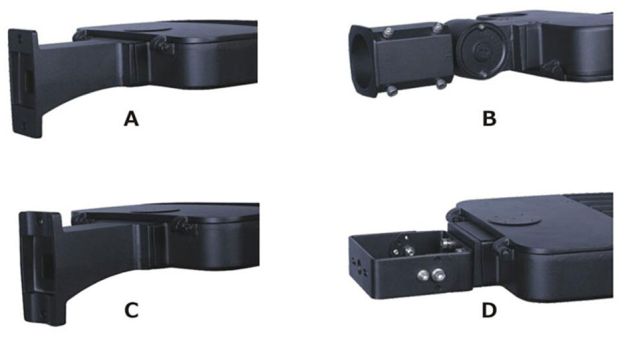

Installing Ways
YASL-17 LED light street lamp both Horizontal and Vertical available installing ways , it can laso be adjustable angle-20°to 20°.
Material
LED light street lamp uses Die casting Aluminum body and PC lens.
Product Specification
| Product Code | 17A-150 | 17B-150 | 17C-150 | 17D-150 | 17A-300 | 17B-300 | 17C-300 | 17D-300 |
| Input Wattage | 150W | 300W | ||||||
| Color Temperature | 3000-6500K | |||||||
| Luminous Flux | 18000-21000 lm | |||||||
| Input Voltage | AC90-305V | |||||||
| Frequency Range | 50/60Hz | |||||||
| Power Factor | PF≥0.95 | |||||||
| Color rendering index | Ra≥70 | |||||||
| Temperature of Working Condition | -40-50ºC | |||||||
| Humidity of Working Condition | 20%-90%RH | |||||||
| LED Lifetime | 50000h | |||||||
| Protection Grade | IP66 | |||||||
| Installation Size | 60mm | |||||||
| Installation Height | 8-12m | 10-14m | ||||||
| Net Weight | 5.8kg | 6.3kg | 5.8kg | 6.3kg | 8.4kg | 8.9kg | 8.4kg | 8.9kg |
| Gross Weight | 6.5kg | 7.0kg | 6.5kg | 7.0kg | 9.0kg | 9.5kg | 9.0kg | 9.5kg |
| Length(mm) | 625 | 683 | 631 | 627 | 725 | 783 | 731 | 727 |
| Packing Size(mm) | 530×350×130 | 630×400×130 | ||||||
Note:
YASL-17 led light street lamp product net weight and gross weight are different due to different product configuration.
The led light street lamp data provided in the table are for reference only, subject to the actual situation.
