Model No: YASL-32
Outdoor Road Highway Plaza Smart City LED Street Lighting
Quantity :
Subscribe to our Newsletter
Outdoor Road Highway Plaza Smart City LED Street Light YASL-32
Product Description
- Light street light on street YASL-32 series LED street lights provide economic lighting solutions.
- Light street light on street is compliance with international standards CE, Rohs……
- Light street light on street power range 30-100W.
Features
- Street light on street is simple and fashion appearance design.
- Light street light is safe and reliable structural design.
- Light street light has independent isolated power supply.
Product Specification
Model | YASL-32-50 | YASL-32-100 | YASL-32-150 | ||||||||||
Input Wattage (W) | 20/30 | 40/50/60/80 | 100/120/150 | ||||||||||
Installation Pipe Diameter | φ48mm | φ60mm | φ60mm | ||||||||||
Installation Height (m) | 3-8 | 6-10 | 8-12 | ||||||||||
Input Voltage | 220-240Vac | ||||||||||||
Frequency Range | 50/60Hz | ||||||||||||
Power Factor | ≥0.9 | ||||||||||||
Light source | 2835/3030 LED | ||||||||||||
LED Quantity | 72 | 144 | 224 | ||||||||||
Driver | integrated | ||||||||||||
Luminaire efficacy (lm/W) | 100-150 | ||||||||||||
Color Temperature | 4000K (3000K/5000K/5700K upon request） | ||||||||||||
Color rendering index | ≥70 | ||||||||||||
Diming | / | ||||||||||||
The environment temperature | -40～45℃ | ||||||||||||
Humidity of Working Condition | 20%～90%RH | ||||||||||||
Protection Grade | IP66 | ||||||||||||
Protection level | IK08 | ||||||||||||
Standards & Certifications | CE | ||||||||||||
Rohs | |||||||||||||
Options | External lightning protection | ||||||||||||
External cable (length upon request) | |||||||||||||
Materials | Housing: ADC12 die-cast aluminum | ||||||||||||
Cover: Toughened Glass | |||||||||||||
External Screws: 304 stainless screws | |||||||||||||
Spray Color | Grey / Black ( other upon request) | ||||||||||||
( Note: The number of leds may be less than this amount depending on power and light efficiency requirements. )

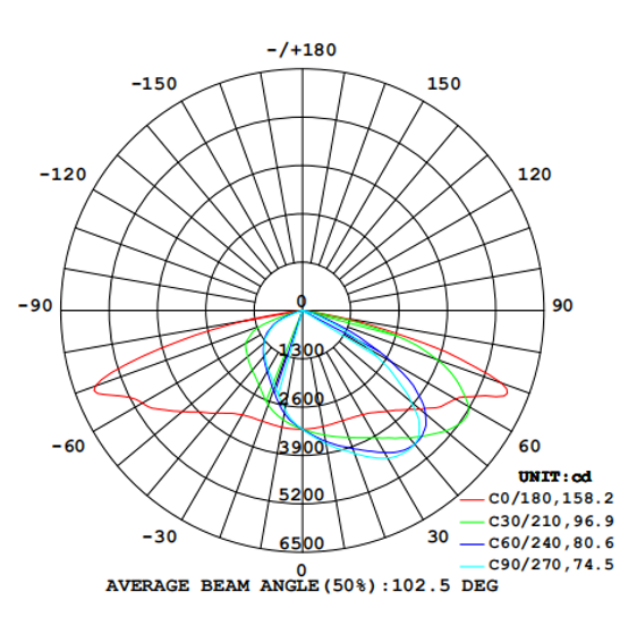

YASL-32 Light Street light on street Photometric data （LED 2835/3030）
Product structure

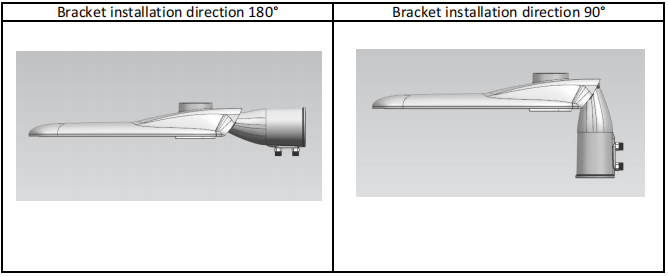

- Light street light on street bracket installation direction: 90° and 180°
Note:
When the product leaves the factory, the bracket installation direction is at 180°.
When the street light on street installed on the lamp pole, adjust the bracket direction according to the situation.
(Just remove the two screws that fixing in the handle, Adjust the bracket to the appropriate position and then fix it, without other accessories. )

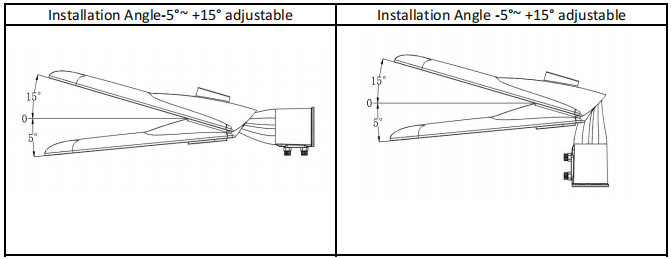

- Light street light on street installation Angle-5°~ +15° adjustable

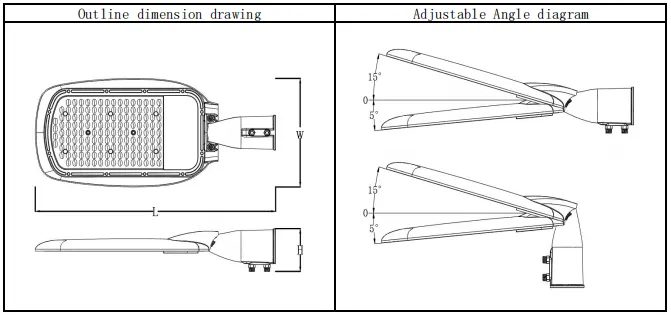

Product size and weight
Model | Product size (mm) | Packing size (mm) | G.W | N.W | |||||
L | W | H | L | W | H | (kgs) | (kgs) | ||
YASL-32-50 | 474 | 172 | 95 | 515 | 190 | 135 | / | / | |
YASL-32-100 | 560 | 230 | 95 | 600 | 250 | 135 | / | / | |
YASL-32-150 | 639 | 274 | 108 | 680 | 295 | 145 | / | / | |
Note:
Product net weight and gross weight are different due to different product configuration.
The data provided in the table are for reference only, subject to the actual situation.
