Model No: YASL-13
50000h IK10 LED Lifetime Street light fixtures
Quantity :
Subscribe to our Newsletter
YASL-13 50000h LED Street LampLifetime fixtures

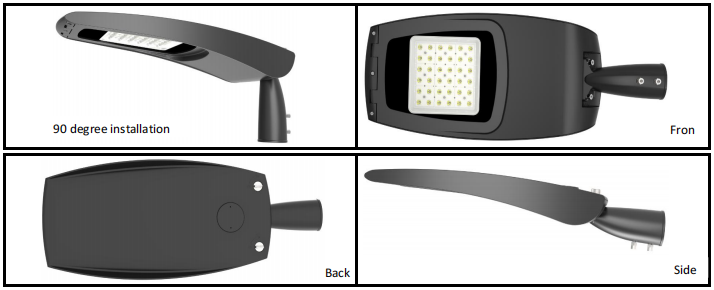

Installing Ways
LED street Lamp can be Horizontal and Vertical, and it can also be adjustable angle-15to 15°.
Material
YASL-13 LED street Lamp uses Die casting body, Ultra clear tempered glass and PC lens.
Product Details
Product Code | YASL-13-50 | YASL-13-100 | YASL-13-150 |
Input Wattage | 50W | 100W | 150W |
Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
Luminous Flux | 5750-6250lm | 11500-12500lm | 16500-18750lm |
Input Voltage | AC90-305V | ||
Frequency Range | 50/60Hz | ||
Power Factor | PF≥0.95 | ||
color rendering index | Ra≥70 | ||
Temperature of Working Condition | -40-50℃ | ||
Humidity of Working Condition | 20%-90%RH | ||
LED Lifetime | 50000h | ||
Protection Grade | IP66 | ||
Installation Pipe Diameter | ⌀60mm | ⌀60mm | ⌀60/70mm |
Installation Height | 4-8m | 6-10m | 8-12m |
Net Weight | 3.9kg | 5.4kg | 9.8kg |
Gross Weight | 4.6kg | 6.5kg | 11.5kg |
Packing Size(mm) | 695×285×130 | 790×340×135 | 970×415×180 |
Product Size(mm) | 641×242×127 | 738×289×129 | 923×361×361 |
Note:
YASL-13 LED street Lamp product net weight and gross weight are different due to different product configuration.
TheYASL-13 LED street Lamp data provided in the table are for reference only, subject to the actual situation.
Product Description

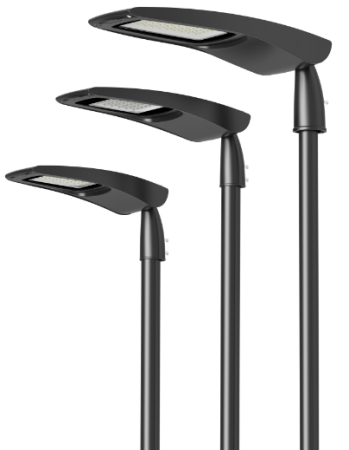

- ThisYASL-13 LED street Lamp series is a high-performance street lighting available in three sizes.
- The lunimaire is manufactured from high pressure die-casting aluminum.
- lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
- Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
