Model No: YASL-07
ADC12 Aluminum Die Casting Mould LED Street Light
Quantity :
Subscribe to our Newsletter

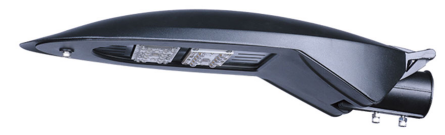

YASL-07 ADC12 Aluminum Die Casting Mould LED Light Street Lamp
Installing ways
LED Light street lamp can be both horizontal and vertical, it can laso be adjustable angle -10 to 10.
Material
YASL-07 led light street lamp uses Die casting aluminum housing and PC lens.
Specifications
| Product Code | YASL-07-50 | YASL-07-100 | |
| Input Wattage | 50W | 100W | |
| Color Temperature | 3000-6500 | 3000-6500K | |
| Luminous Flux | 5000-5500 lm | 10000-11000 lm | |
| Input Voltage | AC90-305V | ||
| Frequency Range | 50/60Hz | ||
| Power Factor | PF≥0.95 | ||
| color rendering index | Ra≥70 | ||
| Temperature of Working Condition | -40~50ºC | ||
| Humidity of Working Condition | 20%-90%RH | ||
| LED Lifetime | 50000h | ||
| Protectin Grade | IP66 | ||
| Installation Pipe Diameter | φ50-φ60mm | ||
| Installation Height | 4-8m | 6-10m | |
| Net Weight | 4.5KG | 7.0KG | |
| Gross Weight | 5.0KG | 7.5KG | |
| Packing Size(mm) | 700*350*160 | 905*415*190 | |
| Product Size(mm) | 646*304*140 | 864*374*177 | |
Note:
YASL-07 led light street lamp product net weight and gross weight are different due to different product configuration.
The led light street lamp data provided in the table are for reference only, subject to the actual situation.
