Model No: YASL-10
Aluminum Die-Casting Man Luminaire Horizontal Only COB Street Lamps
Quantity :
Subscribe to our Newsletter

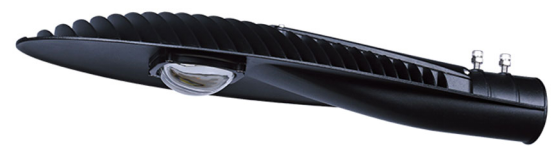

YASL-10 Street Light With LED Horizontal only Led Street Lamps
Product Description
- The UB-10 street light with led is a high efficiency and price competitive garden light which could be used as a wide range of pole top, bracket and suspension applications.
- Street light with led complies with international standards ENEC, CB, CE, EMC, LM79, Rohs …
- Provides a power output from 30 watt to 120 watt and various lighitng distribution available.
Features
- Elegant and exquisite appearance design.
- Safe and reliable structural design.
- Simple structural design.
Installing Ways
Street light with led can be Horizontal only.
Material
Material
Die casting Aluminum body and glass lens.
Specifications
Product Code | YASL-10-50 | YASL-10-100 | YASL-10-120 | YASL-10-150 |
Input Wattage | 50W | 100W | 120W | 150W |
Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
Luminous Flux | 5250-6000 lm | 11000-12000lm | 12600-14400lm | 18900-21600lm |
Input Voltage | AC90-305V | |||
Frequency Range | 50/60Hz | |||
Power Factor | PF≥0.95 | |||
Color rendering index | Ra≥70 | |||
Temperature of Working Condition | -40~50ºC | |||
Humidity of Working Condition | 20%-90%RH | |||
LED Lifetime | 50000h | |||
Protection Grade | IP66 | |||
Installation Pipe Diameter | φ48mm | φ60mm | φ60mm | φ60mm |
Installation Height | 5-8m | 6-10m | 8-12m | 10-14m |
Net Weight | 3.8kg | 5.5kg | 6.5kg | 8.5kg |
Gross Weight | 4.2kg | 6.0kg | 7.0kg | 9.0kg |
Packing Size(mm) | 545×230×115 | 665×300×140 | 750×280×220 | 865×360×180 |
Note:
Street light with led product net weight and gross weight are different due to different product configuration.
The street light with led data provided in the table are for reference only, subject to the actual situation.
