Model No: YASL-04
Aluminum Housing COB Street Luminarias LED Public Light
Quantity :
Subscribe to our Newsletter

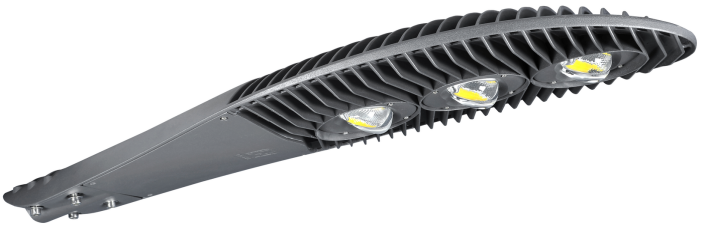

Aluminum Housing COB Street Luminarias LED Light Street Lamp YASL-04
Installing Ways
LED Light Street Lamp can be Horizontal only.
Material
YASL-04 led light street lamp uses Die casting Aluminum housing.
Specifications
Specifications
| Product Code | YASL-04-80 | YASL-04-120 | YASL-04-180 |
| Input Wattage | 80W | 120W | 180W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 8800-9600lm | 13200-14400 lm | 19800-21600lm |
| Input Voltage | AC90-305V | ||
| Frequency Range | 50/60Hz | ||
| Power Factor | PF≥0.95 | ||
| Color rendering index | Ra≥70 | ||
| Temperature of Working Condition | -40~50ºC | ||
| Humidity of Working Condition | 20%~90%RH | ||
| LED Lifetime | 50000h | ||
| Protection Grade | IP66 | ||
| Installation Pipe Diameter | Ø60mm | ||
| Installation Height | 6-8m | 8-12m | 10-14m |
| Net Weight | 5.0kg | 7.5kg | 11.5kg |
| Gross Weight | 5.4kg | 8.0kg | 12.5kg |
| Packing Size(mm) | 705×290×160 | 860×330×160 | 1005×400×185 |
Note:
Product led light street lamp net weight and gross weight are different due to different product configuration.
The led light street lamp data provided in the table are for reference only, subject to the actual situation.
