Model No: YASL-21
Die Casting Aluminum Body Waterproof LED Street Lights Lamp
Quantity :
Subscribe to our Newsletter
Die Casting Aluminum Body LED Street Lighting YASL-21

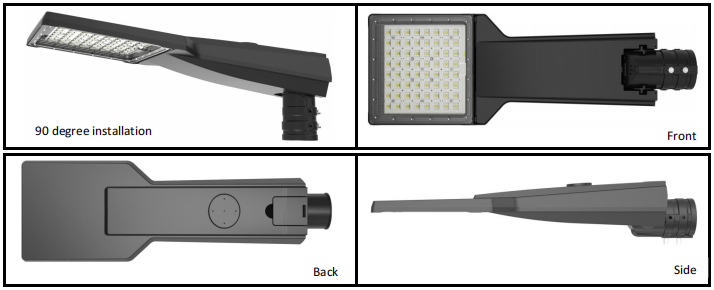

lnstalling Ways
YASL-21 led street lamp Both Horizontal and Vertical available and adjustable angle -10° to +15°
Product Description

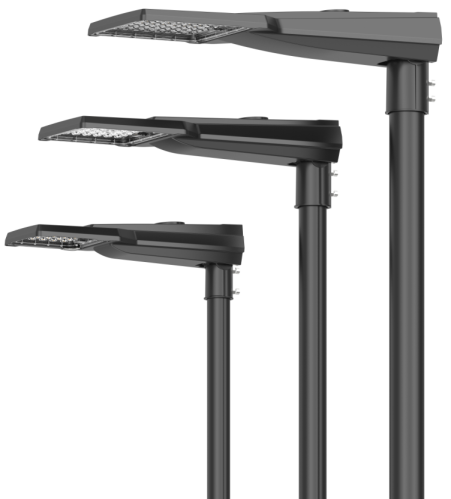

- YASL-21 led street lamp series is a high-performance street lighting available in three sizes.
- LED street lamp YASL-21 is manufactured from high pressure die-casting aluminum.
- YASL-21 led street lamp shall have a led efficiency up to 150 lm/w and will be capable of producing.
- LED street lamp YASL-21 can up to 27000 luminaire lumens at 4000K finished in Grey or black as standard.
| Product Code | YASL-21-40M | YASL-21-80M | YASL-21-150M |
| Input Wattage | 20W / 30W / 50W / 60W | 80W / 100W / 120W | 150W / 180W / 200W / 240W |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 5700K / 6500K | ||
| Luminous Flux | 8100-8700lm | 13500-15000lm | 27000-29000lm |
| Input Voltage | AC90~305V | ||
| Frequency Range | 50/60Hz | ||
| Power Factor | PF≥0.95 | ||
| color rendering index | Ra≥70 | ||
| Temperature of Working Condition | -40~50ºC | ||
| Humidity of Working Condition | 20%~90%RH | ||
| LED Lifetime | 50000h | ||
| Protectin Grade | IP66 | ||
| Protection level | IK08 IK09 IK10 | ||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ60/76mm |
| Installation Height | 4-8m | 6-12m | 10-14m |
| Net Weight | 3.3kgs | 6.2kgs | 7.6kgs |
| Gross Weight | 3.8kgs | 6.9kgs | 8.0kgs |
| Packing Size(mm) | 660*230*170 | 770*280*180 | 890*320*190 |
| Product Code(mm) | 564*165*125 | 719*216*139 | 836*266*155 |
Note:
LED Street lamp product net weight and gross weight are different due to different product configuration.
The data provided in the table are for reference only, subject to the actual situation.
