Model No: YASL-06
Die Casting LED Street Light Luminaire
Quantity :
Subscribe to our Newsletter

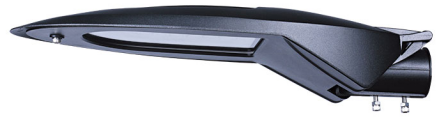

YASL-06 Die Casting Street Light With LED Luminaire
Installing ways
YASL-06 street light with led can be both horizontal and vertical, installing ways and adjustable angle -10 to 10 .
Material
Street light with led uses Die casting aluminum housing, Ultra clear tempered glass and PC lens.
Product Details
| Product Code | YASL-06-40 | YASL-06-80 |
| Input Wattage | 50W | 100W |
| Color Temperature | 3000-6500K | 3000-6500K |
| Luminous Flux | 5250-5500lm | 10500-12500lm |
| Input Voltage | AC90-305V | |
| Frequency Range | 50/60Hz | |
| Power Factor | PF≥0.95 | |
| Color rendering index | Ra≥70 | |
| Temperature of Working Condition | -40~45ºC | |
| Humidity of Working Condition | 20%-90%RH | |
| LED Lifetime | 50000h | |
| Protection Grade | IP66 | |
| Installation Pipe Diameter | Φ48/60mm | Φ60mm |
| Installation Height | 4-8m | 4-8m |
| Net Weight | 3.7kg | 6.5kg |
| Gross Weight | 4.0kg | 7.0kg |
| Packing Size(mm) | 560×265×145 | 700×350×160 |
| Product Size(mm) | 518×238×118 | 646×304×140 |
Note:
YASL-06 street light with led product net weight and gross weight are different due to different product configuration.
TheYASL-06 street light with led data provided in the table are for reference only, subject to the actual situation.
