Model No: YASL-18
High Bright LED Outdoor Area Lighting Road Lights
Quantity :
Subscribe to our Newsletter

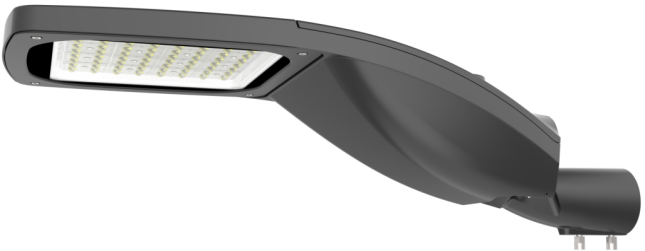

High Bright Street Light with LED Area Road Lights YASL-18

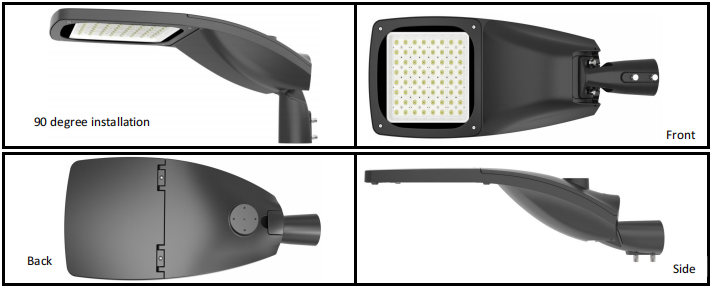

lnstalling Ways
YASL-18 Street light with led both Horizontal and Vertical available, it can be adjustable angle -10° to+10°
Product Description

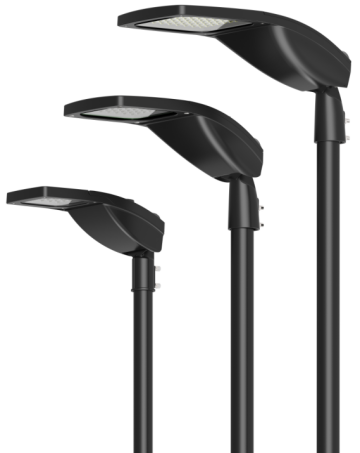

- This YASL-18 series street light with LED is a high-performance street lighting available in three sizes.
- The lunimaire is manufactured from high pressure die-casting aluminum.
- Street light with led YASL-18 shall have a led efficiency up to 130 lm/w and will be capable of producing.
- Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
Product Specification
| Product Code | YASL-18-30M | YASL-18-80M | YASL-18-150M | ||||||
| Input Wattage | 50W | 100W | 200W | ||||||
| Color Temperature | 2700~6500K | 2700~6500K | 2700~6500K | ||||||
| Luminous Flux | 6500-7250lm | 13000-15000lm | 26000-28000lm | ||||||
| Input Voltage | AC90~305V | ||||||||
| Frequency Range | 50/60Hz | ||||||||
| Power Factor | PF≥0.95 | ||||||||
| color rendering index | Ra≥70 | ||||||||
| Temperature of Working Condition | -40~50ºC | ||||||||
| Humidity of Working Condition | 20%~90%RH | ||||||||
| LED Lifetime | 50000h | ||||||||
| Protectin Grade | IP66 | ||||||||
| Protection level | IK08/09/10 | ||||||||
| Installation Pipe Diameter | φ45/60mm | ||||||||
| Installation Height | 4-8m | 6-12m | 10-14m | ||||||
| Net Weight | 3.0kgs | 6.0kgs | 7.4kgs | ||||||
| Gross Weight | 3.5kgs | 6.5kgs | 8.0kgs | ||||||
| Packing Size(m m) | 620*245*185 | 720*320*210 | 820*340*210 | ||||||
Note:
YASL-18 street light with led Product net weight and gross weight are different due to different product configuration.
The data provided in the table are for reference only, subject to the actual situation.
