Model No: YASL-19
IP65 Aluminum Streetlight LED Die Casting Street Light
Quantity :
Subscribe to our Newsletter
LED light street lamp Parking Lot Lighting YASL-19
Features

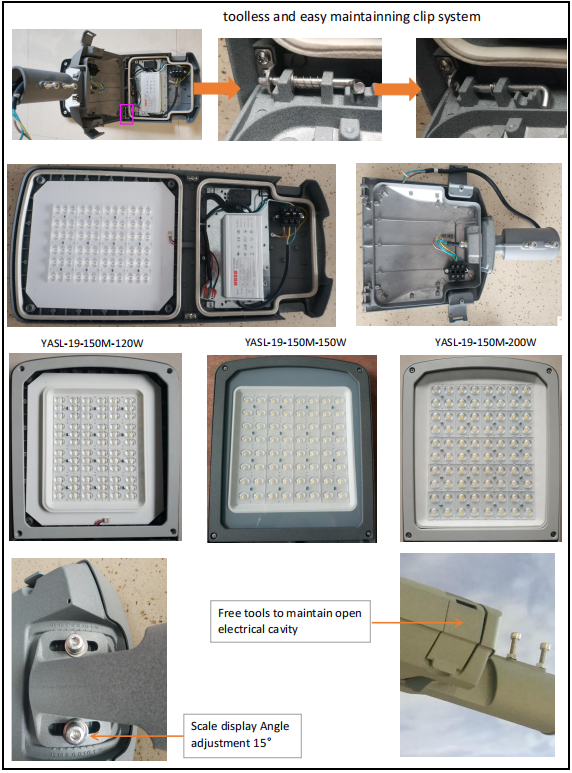

- LED light street lamp has tool-free detachable construction.
- YASL-19 LED light street lamp can use LED 3030 or 5050 light source.
- Dimming：Time control/0-10V/ Optical control
- Lightning protection：10KV/15KV/20KV
- Protection level：IP66；IK08/09/10
- Optical effect：130～190 lm/W
- Warranty：5/8 year option
Install
This LED light street lamp fixture is mounted on a 4-16m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15°
Product Description
| Product Code | YASL-19-30M | YASL-19-50M | YASL-19-80M | YASL-19-150M | ||||||
| Input Wattage | 50W | 60W | 100W | 200W | ||||||
| Color Temperature | 2700~6500K | |||||||||
| Luminous Flux | 6500-7000lm | 13000-15000lm | 13000-15000lm | 26000-30000lm | ||||||
| Input Voltage | AC90~305V | |||||||||
| Frequency Range | 50/60Hz | |||||||||
| Power Factor | PF≥0.95 | |||||||||
| color rendering index | Ra≥70 | |||||||||
| Temperature of Working Condition | -40~50ºC | |||||||||
| Humidity of Working Condition | 20%~90%RH | |||||||||
| LED Lifetime | 50000h | |||||||||
| Protectin Grade | IP66 | |||||||||
| Protection level | IK08/09/10 | |||||||||
| Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ60/76mm | ||||||

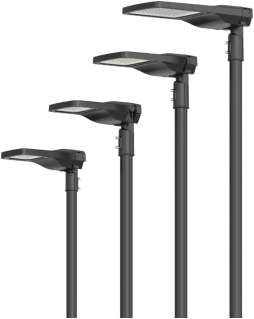

| Installation Height | 4-6m | 5-8m | 6-10m | 8-14m | ||||||
| Net Weight | 3.1kgs | 4.1kgs | 5.0kgs | 6.7kgs | ||||||
| Gross Weight | 3.5kgs | 4.6kgs | 5.5kgs | 7.5kgs | ||||||
| Packing Size(m m) | 580*250*165 | 630*280*155 | 670*310*155 | 820*340*155 | ||||||
Note:
LED light street lamp product net weight and gross weight are different due to different product configuration.
The YASL-19 led light street lamp data provided in the table are for reference only, subject to the actual situation.

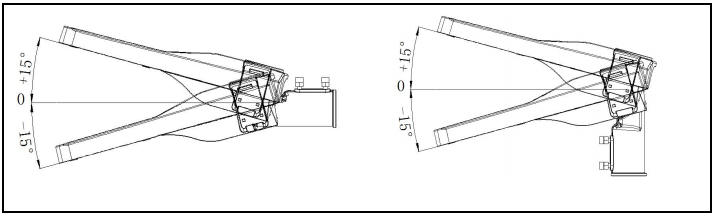

Angle adjustment
Product details
Energy Savings
- High efficiency By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.
- Compared to metal halide lamps, the average savings obtanined using LED Light street light is approx 70%, 90% to halogen lamps.
- This LED light street lamp fixture provides a lumen output equal to 400 Watt Metal Halide and can reduce your lighting bill when compared to metal halide and hps lighting.
