Model No: YASL-14
LED street light fixtures SMD Streetlamp
Quantity :
Subscribe to our Newsletter
Street Light With LED Fixtures YASL-14

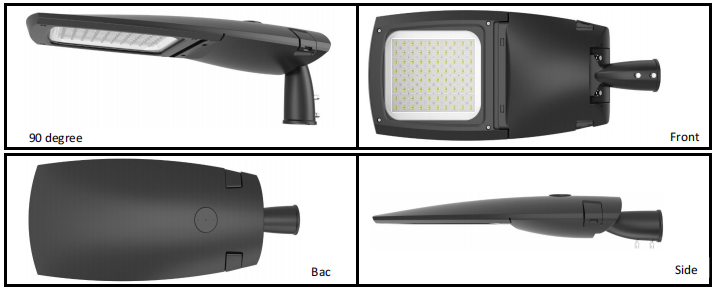

lnstalling Ways
YASL-14 street light with led can be Horizontal and Vertical, and it can also be adjustable angle-15°to+15°.
Product Specification
Product Code | YASL-14-40 | YASL-14-80 | YASL-14-120 | ||||||
Input Wattage | 60W | 120W | 200W | ||||||
Color Temperature | 2700~6500K | 2700~6500K | 2700~6500K | ||||||
Luminous Flux | 7800-9000lm | 15600-18000lm | 26000-30000lm | ||||||
Input Voltage | AC90~305V | ||||||||
Frequency Range | 50/60Hz | ||||||||
Power Factor | PF≥0.95 | ||||||||
color rendering index | Ra≥70 | ||||||||
Temperature of Working Condition | -40~50ºC | ||||||||
Humidity of Working Condition | 20%~90%RH | ||||||||
LED Lifetime | 50000h | ||||||||
Protectin Grade | IP66 | ||||||||
Protection level | IK08/09/10 | ||||||||
Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ60/76mm | ||||||
Installation Height | 4-6m | 6-12m | 10-14m | ||||||
Net Weight | 4.6kgs | 5.4kgs | 9.8kgs | ||||||
Gross Weight | 5.0kgs | 6.5kgs | 11.5kgs | ||||||
Packing Size(mm) | 670*315*190 | 775*315*190 | 800*390*190 | ||||||
Product Size(mm) | 620*287*131 | 738*289*131 | 922*362*140 | ||||||
Note:
YASL-14 street light with led product net weight and gross weight are different due to different product configuration.
TheYASL-14 street light with led data provided in the table are for reference only, subject to the actual situation.
Product Description

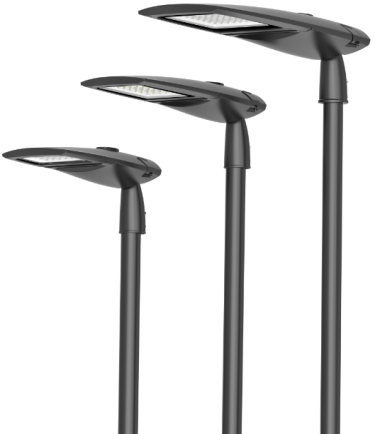

- ThisYASL-14 street light with led series is a high-performance street lighting available in three sizes.
- Thestreet light with led lunimaire is manufactured from high pressure die-casting aluminum.
- lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
- Up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
