Model No: YASL-11B
LED Street Lighting Luminarias LED Publico Lights
Quantity :
Subscribe to our Newsletter

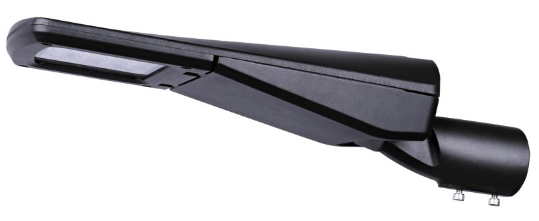

YASL-11 LED Light Street Lamp Luminarias Publico Lights

Features
- 40/60/120 Watt LED LIGHT STREET LAMP produces 4400-15600 lumens at 120 lumens / watt and is manufactured from durable die-casting aluminum .
- Perfect for street lighting and parking lots.
- YASL-11 LED Light Street Lamp Material - Die casting aluminum housing ,ultra clear tempered glass and pc lens .
- LED Light Street Lamp can get to 4000K Color Temperature.
- Photocell options include 3 pin and two 7 pin options.
Install
- This led light street lamp fixture is mounted on a 4-12m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle -10°to+10°
- YASL-19led light street lamp fixture has internal clamps to secure itself to pole.
This 120 Watt LED LIGHT STREET LAMP is ideal for residential street and parking lot outdoor lighting applications.
It is also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree.
This fixture has 1000 hours salt water spray test. Fixture is tough and durable rated at IK08 impact rating.
Energy Savings
- High efficiency By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.
- Compared to metal halide lamps ,the average savings obtanined using LED Lighting is approx 70% ,90% to halogen lamps.
- This fixture provides a lumen output equal to 400 Watt Metal Halide and can reduce your lighting bill when compared to metal halide and hps lighting.
Warranty / Certifications
- LED Lighting Supply provides a 5 year warranty along with CE and Rebate Eligible certifications.
- IP66 / CE / ROHS
Product Specification
| Product Code | YASL-11B-40 | YASL-11B-50 | YASL-11B-120 | |
| Input Wattage | 40W | 60W | 120W | |
| Color Temperature | 3000/4000/6500 | |||
| Luminous Flux | 4400-4800lm | 6900-7500lm | 13800-15600 lm | |
| Input Voltage | AC90-305V | |||
| Frequency Range | 50/60Hz | |||
| Power Factor | PF≥0.95 | |||
| color rendering index | Ra≥70 | |||
| Temperature of Working Condition | -40~50ºC | |||
| Humidity of Working Condition | 20%-90%RH | |||
| LED Lifetime | 50000h | |||
| Protectin Grade | IP66 | |||
| Installation Pipe Diameter | φ60mm | |||
| Installation Height | 4-8m | 6-10m | 8-12m | |
| Net Weight | 3.5kg | 5.3kg | 8.8kg | |
| Gross Weight | 3.9kg | 5.8kg | 9.3kg | |
| Packing Size(mm) | 600*270*155 | 695*285*130 | 850*370*215 | |
Note:
LED Light Street Lamp product net weight and gross weight are different due to different product configuration.
The data LED Light Street Lamp provided in the table are for reference only, subject to the actual situation.
