Model No: YASL-27
Outdoor LED Streetlight Outdoor Commercial Area Lighting
Quantity :
Subscribe to our Newsletter
Street Light with LED Outdoor Commercial Area Lighting YASL-27
Product Description
- Street light with led YASL-27 series LED street lights provide complete lighting solutions for road and street
- YASL-27 street light with led complies with international standards ENEC, CB, CE, EMC, LM79, Rohs …
- Full wattage from 30 to 240W , with ultra-high luminous efficiency and various lighting distribution
- Intelligent control system: timing dimming , 0-10v dimming , Dali , Zigbee , NB-Lot , etc
- YASL-27 street light with led can choose Class I or ClassII.
Features
- YASL-27 street light with led has novel and beautiful appearance design.
- Street light with led YASL-27 has safe and reliable structural design.
- Button type lamp opening structure design.
- Adjustable bracket both available for horizontal and vertical installing.
Specifications
| Model | YASL-27-60(M) | YASL-27(H)-120(M) | YASL-27(H)-200(M) | ||||
| Input Wattage (W) | 30/40/50/60 | 80/100/120 | 150/200/240 | ||||
| Installation Pipe Diameter | φ60mm | φ60mm | φ60mm | ||||
| Installation Height (m) | 3-8 | 6-10 | 8-12 | ||||
| Input Voltage | 90~305Vac | ||||||
| Frequency Range | 50/60Hz | ||||||
| Power Factor | ≥0.9 | ||||||
| Light source | LED | ||||||
| Driver | Inventronics | ||||||
| Meanwell (optional) | |||||||
| other brand of driver（upon request） | |||||||
| Luminaire efficacy (lm/W) | 130-170 | ||||||
| Color Temperature | 4000K (3000K/5000K、5700K upon request） | ||||||
| Color rendering index | ≥70 | ||||||
| Diming | Dali (optional) | ||||||
| 1-10V (optional) | |||||||
| PWM (optional) | |||||||
| Smart control management system （upon request） | |||||||
| The environment temperature | -40～45℃ | ||||||
| Humidity of Working Condition | 20%～90%RH | ||||||
| Protectin Grade | IP66 | ||||||
| Protection level | IK08 | ||||||
| Standards & Certifications | ENEC（uncertificated） | ||||||
| CB（uncertificated） | |||||||
| CE | |||||||
| Rohs | |||||||
| Options | Photocell | ||||||
| Surge protection | |||||||
| External cable (length upon request) | |||||||
| Smart control device | |||||||
| Materials | Housing: ADC12 die-cast aluminum | ||||||
| Cover: Toughened Glass | |||||||
| External Screws: 304 stainless screws | |||||||
| Spray Color | Grey / Black ( other upon request) | ||||||

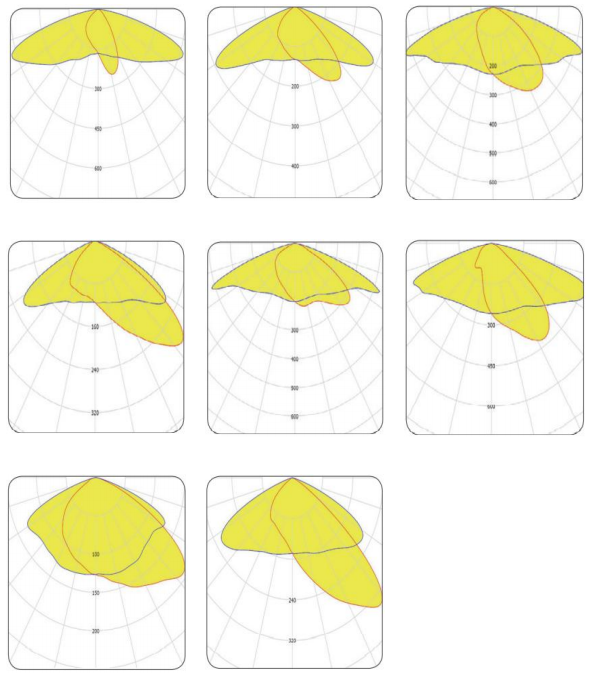

YASL-27 Street Light with LED Photometric data（LUXEON 3030）

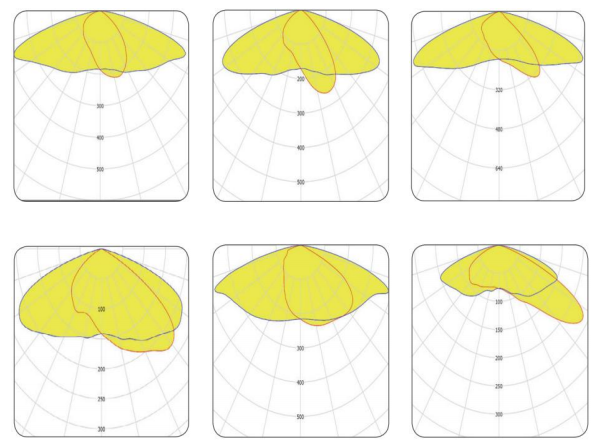

YASL-27 Street Light With LED Photometric data （LUXEON 5050）
Product structure

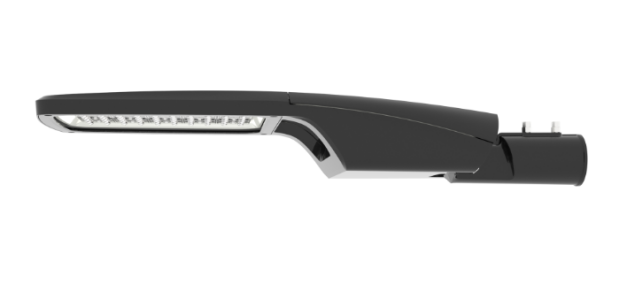

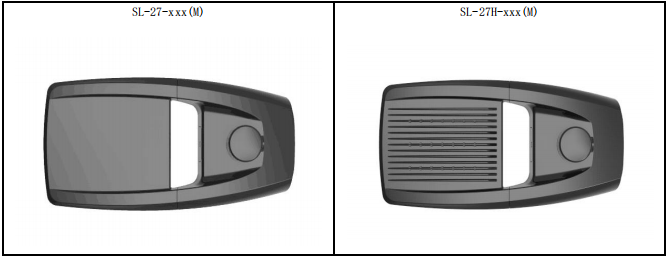

- YASL-27 & YASL-27H street light with led

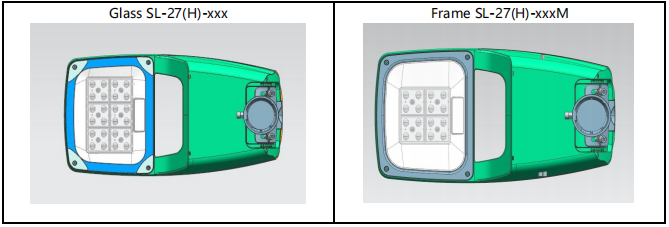

- Glass & Frame street light with led

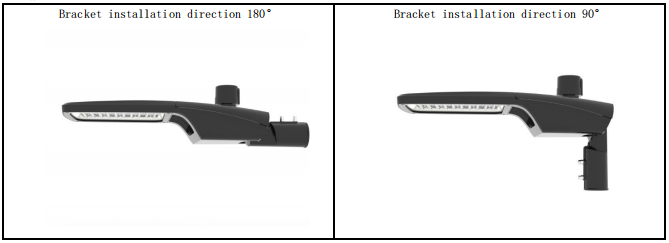

- Bracket installation direction
Note:
When the YASL-27 street light with led product leaves the factory, the bracket installation direction is at 180°.
When the lamp installed on the lamp pole, adjust the bracket direction according to the situation.
(Just remove the two screws that fixing in the handle, Adjust the bracket to the appropriate position and then fix it, without other accessories)

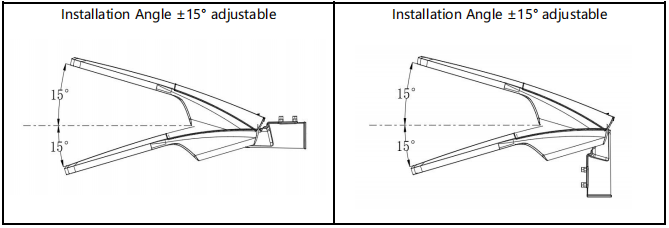

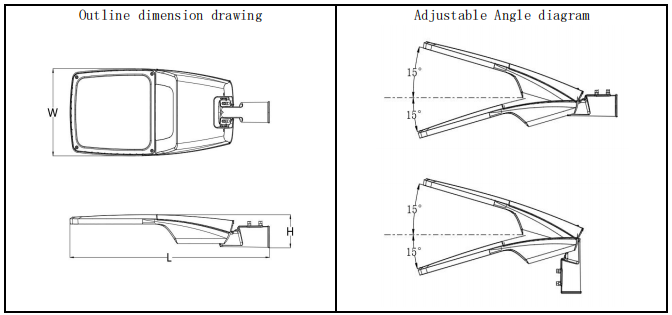

- Installation Angle adjustable

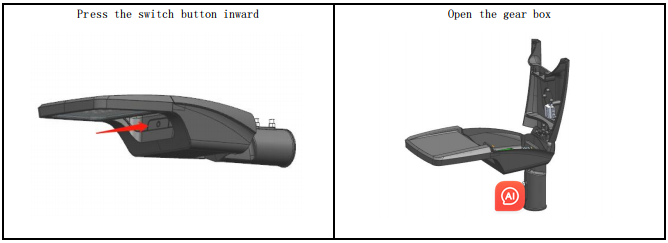

- The way gear boxes are opened
Product size and weight
| Model | Packing size (mm) | Packing size (mm) | G.W | N.W | |||||
| L | W | H | L | W | H | (kgs) | (kgs) | ||
| YASL-27-60 | 616.8 | 250 | 113.3 | 670 | 320 | 160 | / | / | |
| YASL-27-60M | 616.8 | 250 | 113.3 | 670 | 320 | 160 | / | / | |
| YASL-27-120 | 706.8 | 280 | 113.3 | 770 | 330 | 160 | / | / | |
| YASL-27-120M | 706.8 | 280 | 113.3 | 770 | 330 | 160 | / | / | |
| YASL-27H-120 | 706.8 | 280 | 121.2 | 770 | 330 | 160 | / | / | |
| YASL-27H-120M | 706.8 | 280 | 121.2 | 770 | 330 | 160 | / | / | |
| YASL-27-200 | 782.9 | 320 | 113.3 | 840 | 370 | 160 | / | / | |
| YASL-27-200M | 782.9 | 320 | 113.3 | 840 | 370 | 160 | / | / | |
| YASL-27H-200 | 782.9 | 320 | 123.4 | 840 | 370 | 160 | / | / | |
| YASL-27H-200M | 782.9 | 320 | 123.4 | 840 | 370 | 160 | / | / | |
Note:
Street light with led Product net weight and gross weight are different due to different product configuration.
The data provided in the table are for reference only, subject to the actual situation.
