Model No: YASL-20
Outdoor Lighting High Brightness Street Lighting
Quantity :
Subscribe to our Newsletter

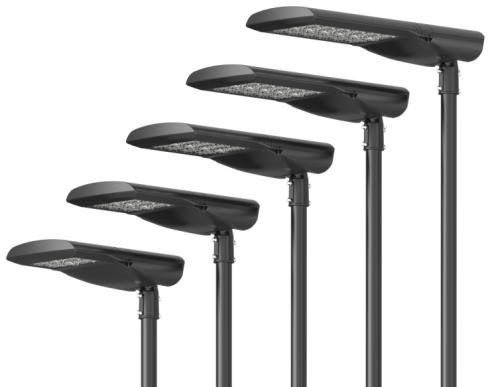

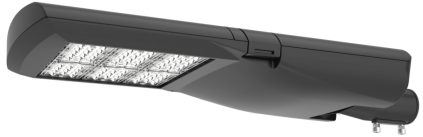

IP66 Outdoor Street light with LED YASL-20

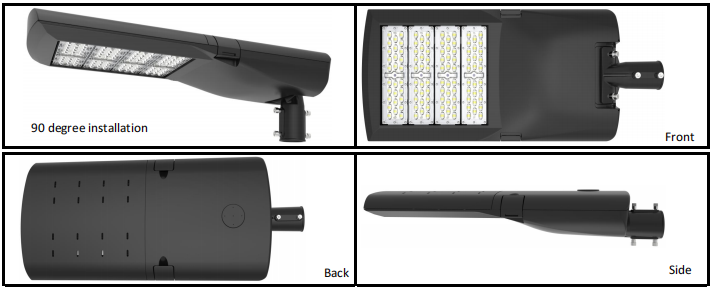

Installing Ways
Street light with led both Horizontal and Vertical availableand adjustable angle -15°to 15°.
Material
YASL-20 street light with led uses die casting aluminum body and PC lens.
Product Specification(YASL-20 Street light with led)
Product Code | YASL-20-100M | YASL-20-150M | YASL-20-200M | YASL-20-250M | YASL-20-300M | ||||||||
Input Wattage | 120W | 180W | 240W | 300W | 360W | ||||||||
Color Temperature | 3000~6500K | 3000~6500K | 3000~6500K | 3000~6500K | 3000~6500K | ||||||||
Luminous Flux | 15600-19200lm | 23400-28800lm | 31200-38400lm | 39000-48000lm | 46800-57600lm | ||||||||
Input Voltage | AC90~305V | ||||||||||||
Frequency Range | 50/60Hz | ||||||||||||
Power Factor | PF≥0.95 | ||||||||||||
color rendering index | Ra≥70 | ||||||||||||
Temperature of Working Condition | -40~50ºC | ||||||||||||
Humidity of Working Condition | 20%~90%RH | ||||||||||||
LED Lifetime | 50000h | ||||||||||||
Protectin Grade | IP66 | ||||||||||||
Protection level | IK08/09/10 | IK08/09/10 | IK08/09/10 | IK08/09/10 | IK08/09/10 | ||||||||
Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ45/60mm | φ45/60mm | φ45/60mm | ||||||||
Installation Height | 6-10m | 8-14m | 10-14m | 10-14m | 10-14m | ||||||||
Net Weight | 5.5kgs | 5.8kgs | 6.2kgs | 6.5kgs | 6.9kgs | ||||||||
Gross Weight | 6.5kgs | 6.5kgs | 7.2kgs | 7.5kgs | 7.9kgs | ||||||||
Packing Size(mm) | 780*410*195 | 860*410*195 | 940*410*195 | 1020*410*195 | 1100*410*195 | ||||||||
Product Size(mm) | 738*371*158 | 818*371*158 | 898*371*158 | 978*371*158 | 1058*371*158 | ||||||||
Note:
YASL-20 street light with led Product net weight and gross weight are different due to different product configuration.
Street light with led YASL-20 data provided in the table are for reference only, subject to the actual situation.
