Model No: YASL-24
Public Lighting LED Induction Street Lamp Road LED Light
Quantity :
Subscribe to our Newsletter
Public Lighting LED Street Lamp Induction Road LED Light YASL-24

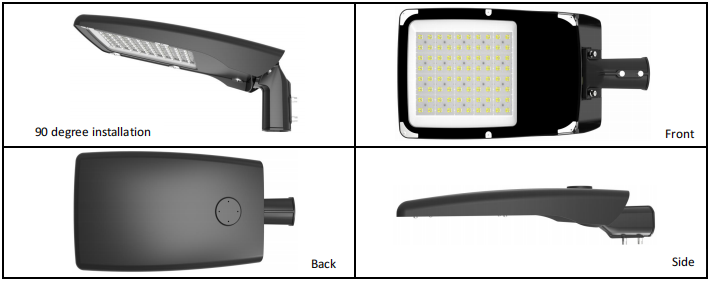

lnstalling Ways
YASL-24 LED street lamp both Horizontal and Vertical available and adjustable angle-15°to+15°
Product Description

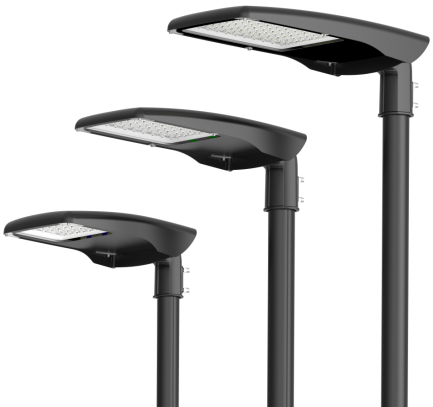

- This led street lamp series is a high-performance street lighting available in three sizes.
- YASL-24 led street lamp is manufactured from high pressure die-casting aluminum.
- lt shall have a led efficiency up to 130 lm/w and will be capable of producing.
- Led street lamp can up to 26000 luminaire lumens at 4000K finished in Grey or black as standard.
Product Specification
| Product Code | YASL-24-60 | YASL-24-120 | YASL-24-200 | ||||||
| Input Wattage | 60W | 120W | 200W | ||||||
| Color Temperature | 2700~6500K | 16800~18000K | 2700~6500K | ||||||
| Luminous Flux | 7800-9000lm | 15600-18000lm | 26000-30000lm | ||||||
| Input Voltage | AC90~305V | ||||||||
| Frequency Range | 50/60Hz | ||||||||
| Power Factor | PF≥0.95 | ||||||||
| color rendering index | Ra≥70 | ||||||||
| Temperature of Working Condition | -40~45℃ | ||||||||
| Humidity of Working Condition | 20%~90%RH | ||||||||
| LED Lifetime | 50000h | ||||||||
| Protectin Grade | IP66 | ||||||||
| Protection level | IK08/09/10 | ||||||||
| Installation Pipe Diameter | φ45/60mm | φ60mm | φ60/76mm | ||||||
| Installation Height | 3-8m | 6-10m | 8-12m | ||||||
| Net Weight | 3.3kgs | 4.5kgs | 6.2kgs | ||||||
| Gross Weight | 4.0kgs | 5.3kgs | 7.0kgs | ||||||
| Packing Size（m m） | 520*310*170 | 630*310*170 | 680*360*175 | ||||||
Note:
Product net weight and gross weight are different due to different product configuration.
The data provided in the table are for reference only, subject to the actual situation.
