Model No: YASL-16
Solar Powered LED Street Light 2 Modes 20W Outdoor Solar Charging Lighting
Quantity :
Subscribe to our Newsletter

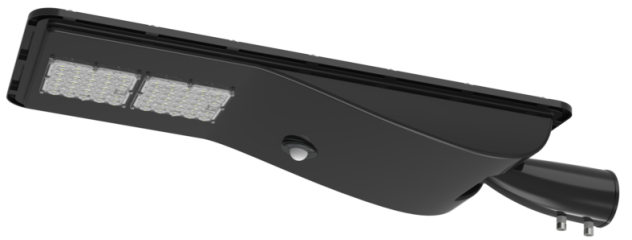

LED Solar street Lights Outdoor Charging Lamp YASL-16
Installing Ways
YASL-16 solar street lights outdoor both Horizontal and Vertical available and adjustable angle-15°to 15°.
Features
- Integrated design, convenient installation,components are easy to change,cost savings. Smallvolume, easy to transport.
- PIR motion infra-red sensors and intelligent controller, to ensure the effect of the lamps and lanterns lighting ability.
- YASL-16 solar street lights outdoor has professional heat dissipation design, professional waterproof design and protection grade Ip66.
- Use special pair of plug connector, prevent from misconnection and other functions.
- YASL-16 solar street lights outdoor can be Windy loading 65 m/SEC.
- USES of rotating lamp arm to multi-angle adjustment,it is suitable for different latitude regions and differentforms of light pole installation requirements.
Material
YASL-16 solar street lights outdoor uses Die casting Aluminum body Ultra clear tempered glass and PC lens.
Parameters
| Product Code | YASL-16-10 | YASL-16-20 |
| Nominal power | 10W | 15W |
| LED Quantity(LUXEON 3030 2D) | 96 pcs | 192 pcs |
| Color Temperature | 3000-6500K | 3000-6500K |
| Color rendering index | Ra≥70 | |
| Total Flux | 1730lm | 2592 lm |
| Operating time(Full power) | ≥12HR | |
| Operating time(Intelligent mode) | 4-5Days | |
| Induction distance(Microwave induction) | 8-12m | |
| Mono-Crystalline Silicon solar panel | 18W | 30W |
| Lithium-ion Li Fepo4 batteries | 9.6AH | 16AH |
| Temperature of Working Condition | -10-60ºC | |
| Humidity of Working Condition | 10%-90%RH | |
| Controller | 2years | |
| Protection Grade | IP66 | |
| Installation Pipe Diameter | Φ60mm | |
| Installation Height | 4-6m | 5-7m |
| Net Weight | 5.5kg | 7.5kg |
| Gross Weight | 6.0kg | 8.0kg |
| Packing Size(mm) | 710×330×150 | 880×390×170 |
Note:
YASL-16 solar street lights outdoor product net weight and gross weight are different due to different product configuration.
The YASL-16 solar street lights outdoor data provided in the table are for reference only, subject to the actual situation.
