Model No: YASL-03
Urban Project Street and Roadway Lighting
Quantity :
Subscribe to our Newsletter

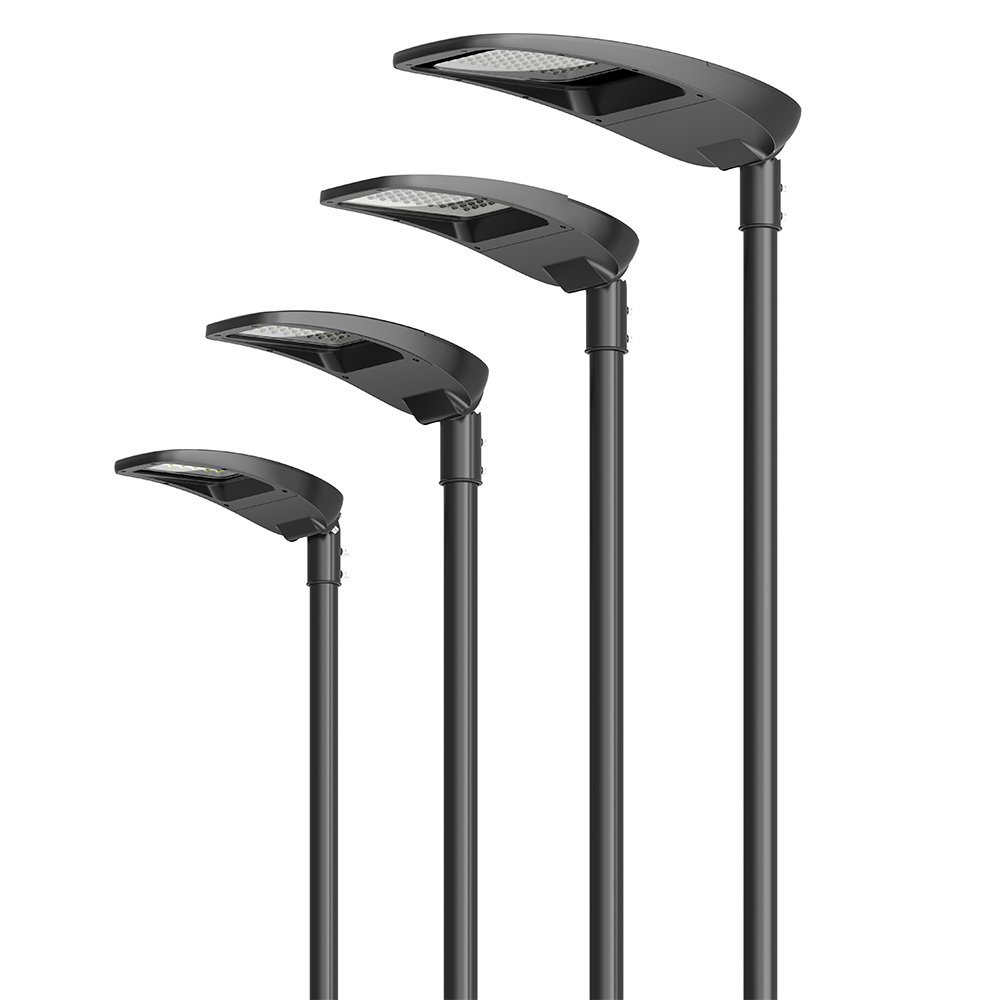

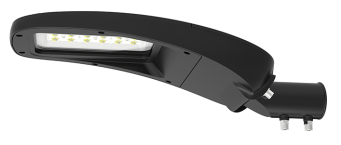

LED Street Lamp YASL-03 Urban Project Street and Roadway Lighting
Features
- 30 60 120 200 Watt LED STREET LIGHT produces 3300-25000 lumens at 120 lumens / watt and has durable die-cast aluminum
- LED Street Lamp uses Heatsink housing.
- Perfect for street lighting and parking lots.
Material
- LED street lamp uses Die casting aluminum housing, ultra clear tempered glass and pc lens.
- YASL-03 LED Street Lamp can get to 4000K Color Temperature.
- Photocell options include 3 pin and two 7 pin options.
Install
- This YASL-03 led street lamp fixture is mounted on a 4-14m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle 0°to+15°.
- YASL-03 led street lamp fixture has internal clamps to secure itself to pole.
This 200 Watt LED STREET LAMP is ideal for residential street and parking lot outdoor lighting applications. It is also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree. This fixture has 1000 hours salt water spray test. Fixture is tough and durable rated at IK08 impact rating.
Energy Savings
- High efficiency By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.
- Compared to metal halide lamps ,the average savings obtanined using LED Lighting is approx 70% ,90% to halogen lamps.
- This fixture provides a lumen output equal to 400 Watt Metal Halide and can reduce your lighting bill when compared to metal halide and hps lighting.
Warranty / Certifications
- LED Lighting Supply provides a 5 year warranty along with CE and Rebate Eligible certifications.
- IP66 / CE / ROHS
Product Specification
| Product Code | YASL-03-40 | YASL-03-50 | YASL-03-100 | YASL-03-200 |
| Input Wattage | 30W | 60W | 120W | 200W |
| Color Temperature | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| Luminous Flux | 3300-3600lm | 6600-7200lm | 13200-14400lm | 22000-25000lm |
| Input Voltage | AC90-305V | |||
| Frequency Range | 50/60Hz | |||
| Power Factor | PF≥0.95 | |||
| Color rendering index | Ra≥70 | |||
| Temperature of Working Condition | -40~50ºC | |||
| Humidity of Working Condition | 20%-90%RH | |||
| LED Lifetime | 50000h | |||
| Protection Grade | IP66 | |||
| Installation Pipe Diameter | Ø50mm | Ø60mm | Ø60mm | Ø60mm |
| Installation Height | 4-6m | 4-8m | 8-12m | 10-14m |
| Net Weight | 3.7kg | 5.5kg | 7.5kg | 11.8kg |
| Gross Weight | 4.0kg | 6.0kg | 8.0kg | 12.5kg |
| Packing Size(mm) | 570×240×255 | 680×295×150 | 750×355×165 | 915×415×185 |
Note:
YASL-03 led street lamp product net weight and gross weight are different due to different product configuration.
The led street lamp data provided in the table are for reference only, subject to the actual situation.
