YASL-29 SMD Smart Outdoor LED Street Lights

Smart Street Light Features

• Tool-free detachable construction.
• Using LED 30305050 light source.
• Dimming: Time control / 0-10V / Optical control / Microwaves / DALI dimming.
• Lightning protection: 10KV/15KV/20KV.
• Protection level: IP66；IK08/09/10.
• Optical effect: 130～180 lm/W.
• Warranty: 5/8 year option.

Product Code			YASL-29-40		YASL-29-60		YASL-29-100		YASL-29-160		YASL-29-240
Input Wattage(W)			30～60W		50～90W		80～140W		130～200W		200～300W
Number of lenses(PCS)			4(MAX 6)		6(MAX 8)		9(MAX 12)		16(MAX 20)		24(MAX 30)
Installation Height			3-6m		4-8m		6-10m		8-14m		12-14m
Product Size(mm)			576X209X89		593X263X89		646X263X89		709X315X89		812X315X89
Packing Size(mm)			585X250X140		620X305X140		665X305X140		730X360X140		840X360X140
Net Weight			3.8kgs		4.1kgs		4.6kgs		7.4kg		9.5kg
Gross Weight			4.2kgs		4.5kgs		5.0kgs		7.9kg		10.5kg
Installation Pipe Diameter			φ45/60mm						φ60/76mm
Materials			Housing: ADC12 / Cover: Toughened Glass / Screws: 304stainless screws
Spray Color			Double Grey / Sandy Black / Matt Silver
Led brand			LUMILEDS / OSRAM / CREE option
Led Specifications			3030 / 5050 option
Optical effect			130～140 lm/w ; 140～150 lm/w ; 150～160 lm/w ; 160～170 lm/w ; 170～180 lm/w option
Color Temperature			2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K option（Reference：Energy Star)
color rendering index			Ra≥70 / Ra≥80 / Ra≥90 option
Optics			TYPEI / TYPEII / TYPEIII / TYPEV / TYPEIV option
Driver brand			PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS
Input Voltage			AC90～305V
Security level			ClassI / ClassII / Class1 / Class2 option
Frequency Range			43～63Hz
Power Factor			PF≥0.95
Working conditions Range			-30 to 45℃ / 20% to 90%RH
Dimming mode			Time control / 0-10V / Opticalcontrol / Microwaves / DALI option
Lightning protection			10KV / 15KV / 20KV option
Warranty			5/8 year option
Protection			Overcurrent / Short circuit / Over temperature
Protection level			IP66 ; IK08 / IK09
Certifications			CE / RoHs / IP66 / IK08

Note:

Smart street light product net weight and gross weight are different due to different product configuration.

The data provided in the table are for reference only, subject to the actual situation.

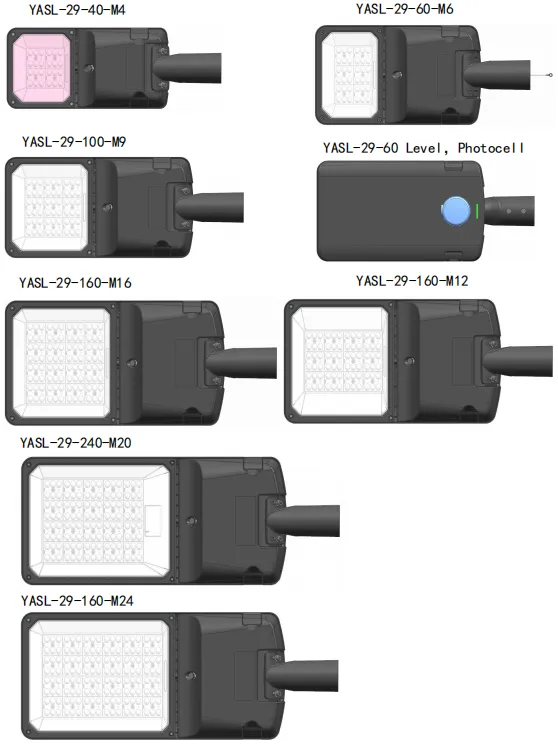

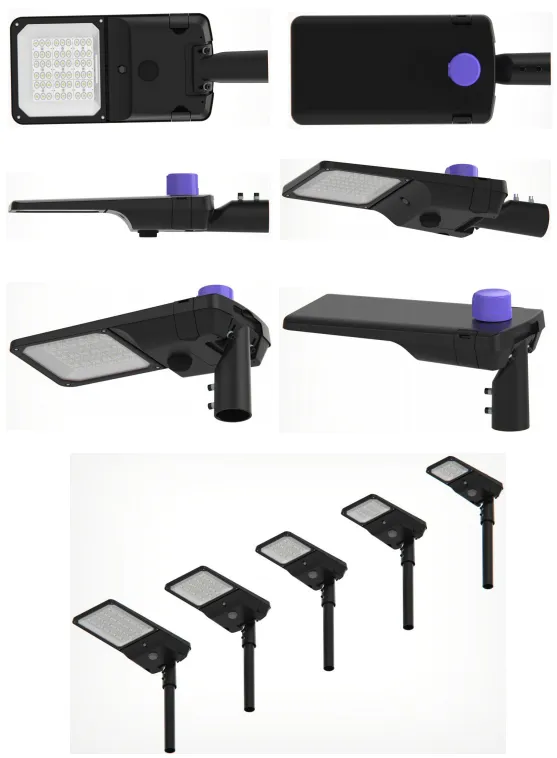

Smart Street Light Product details

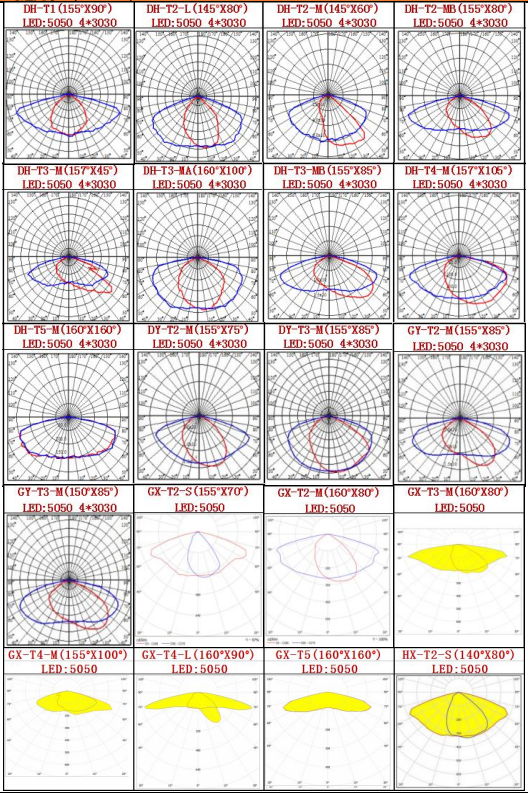

Smart Street Light Optional optics

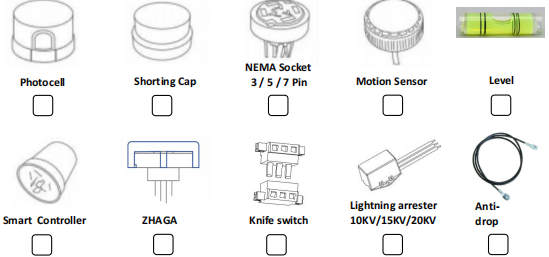

Smart Street Light Optional Accessories

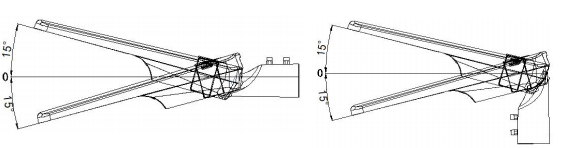

Smart Street Light Angle adjustment

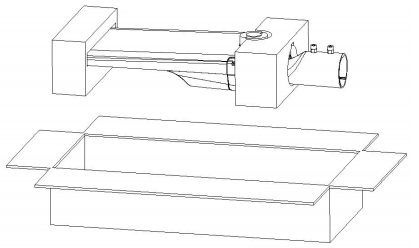

Smart Street Light Packing
